Brush Electric Motor,ZY6812 24V 150W Brush Electric Motor Chain Synchronizing Wheels Permanent Magnet DC Chain Tooth
4.2 (100 items)
Limited Time Sale$23.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210252299 | Release Date | 2026/04/02 | List Price | $16.00 | Model Number | 210252299 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Item type: DC Brush Motor Model: ZY6812Material: aluminium Color: blackWeight: Approx. 1368gRated power: 120W (kW)Rated voltage: 12 (V)Rated speed: 3500 (rpm)Main scope of application: electric scooter, electric bike3C rated voltage range: below DC 36VRated current: <8.5ARated speed (rpm): 2500 ± 5%Maximum speed (rpm): 3500 ± 5%No-load current: <0.9ARated torque: 0.56 torqueTransmission: belt pulley, metalAxial diameter: Approx. 8mm/0.3in(one side milling groove: Approx. 1mm/0.04in)Efficiency: > 68%Motor length: Approx.100 mm/ 3.9 inchesMotor diameter: Approx. 68 mm/ 2.7 inAxial diameter: Approx. 8 mm/ 0.3 inMotor fixed hole distance: Approx. 36mm/ 1.4inSprocket: 25H 9 teeth sprocket Package List:1 x Motor

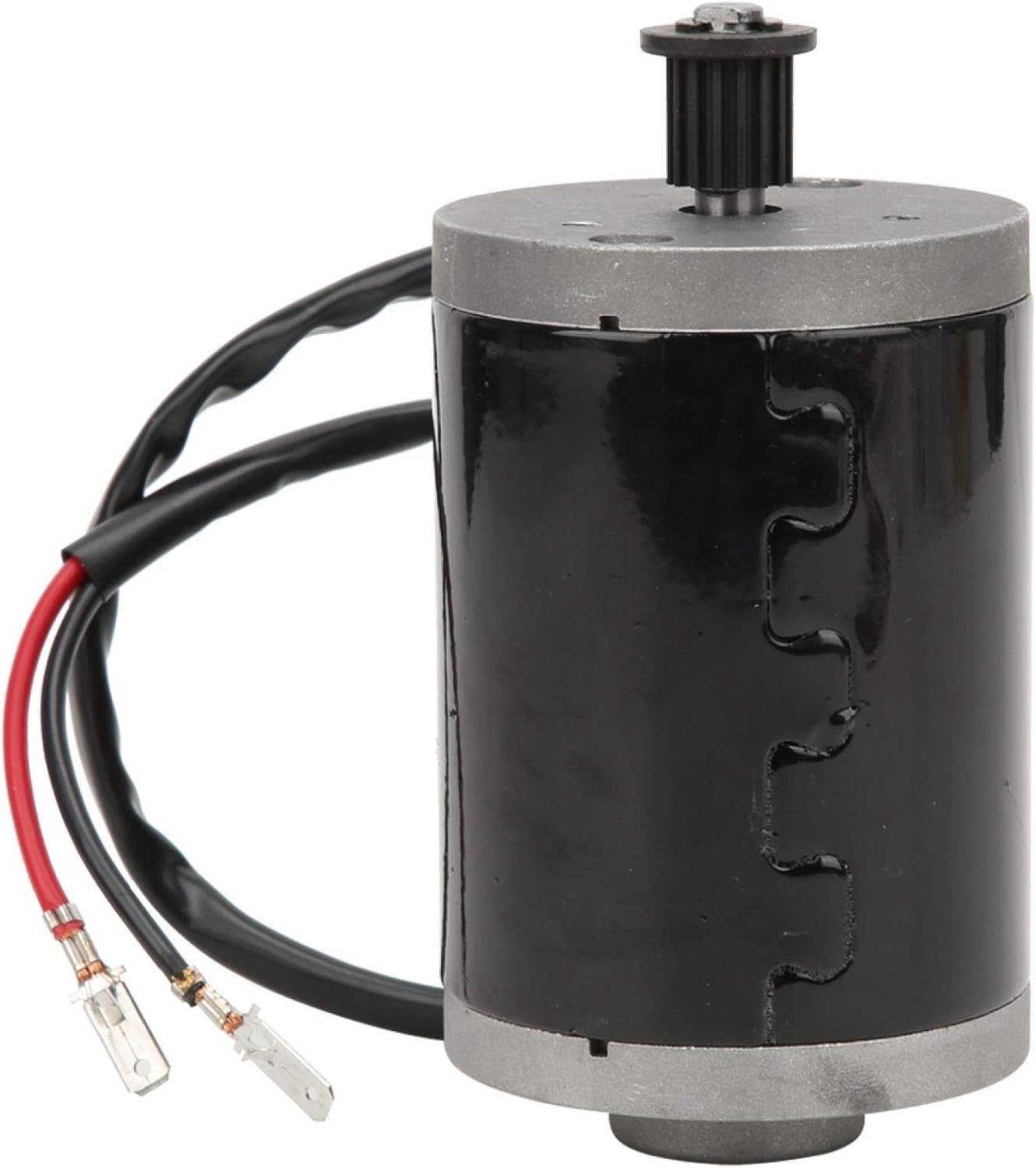

- This product is small DC brush motor.
- Made of high quality aluminium material, good performance, stable, long service time.
- With metal belt pulley, fine workmanship, sturdy and durable.
- Motor length is 100mm, diameter is 68mm, shaft length is 28mm, shaft diameter is 8mm, 2 fixed hole spacing of motor is 36mm, sprocket is 25H type, 9 tooth sprocket.
- Suitable for electric scooters, electric bicycles, etc.
| Model | EVTSCANfq57kueipg |
|---|---|
| Voltage | 12 Volts, 24 Volts |
| Brand Name | EVTSCAN |
| Horsepower | 150 Watts |
| Item Weight | 1.37 Kilograms |
| Manufacturer | EVTSCAN |
| Material Type | Aluminum |
Permanent Magnet Motors
