Dimmer Light Switch, SWX-823-WH, 0-10V Dimming, Line Powered, 120-277V, No Neutral Required, White, Made in USA
4.0 (93 items)
Limited Time Sale$595.28 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210096868 | Release Date | 2026/04/02 | List Price | $396.86 | Model Number | 210096868 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

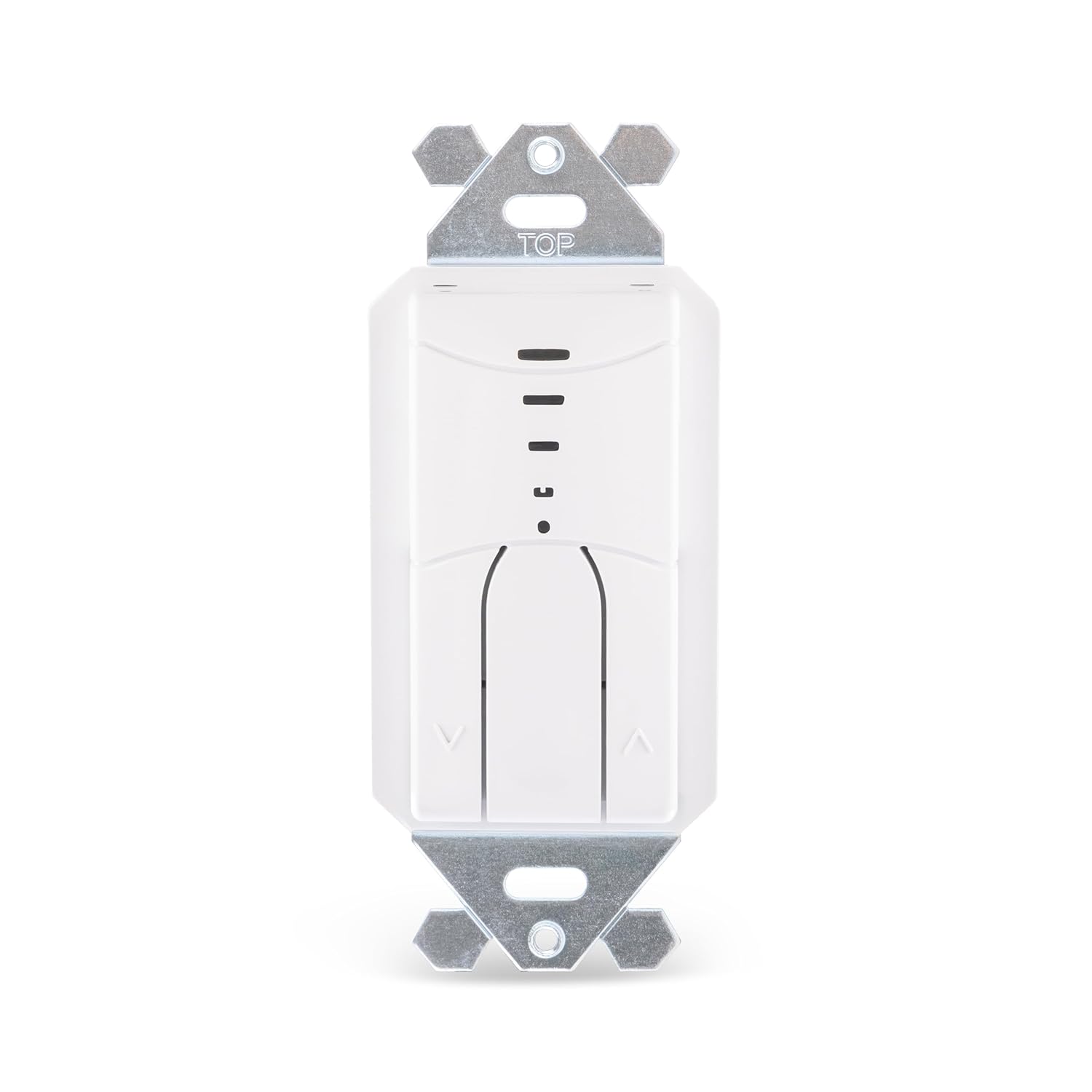

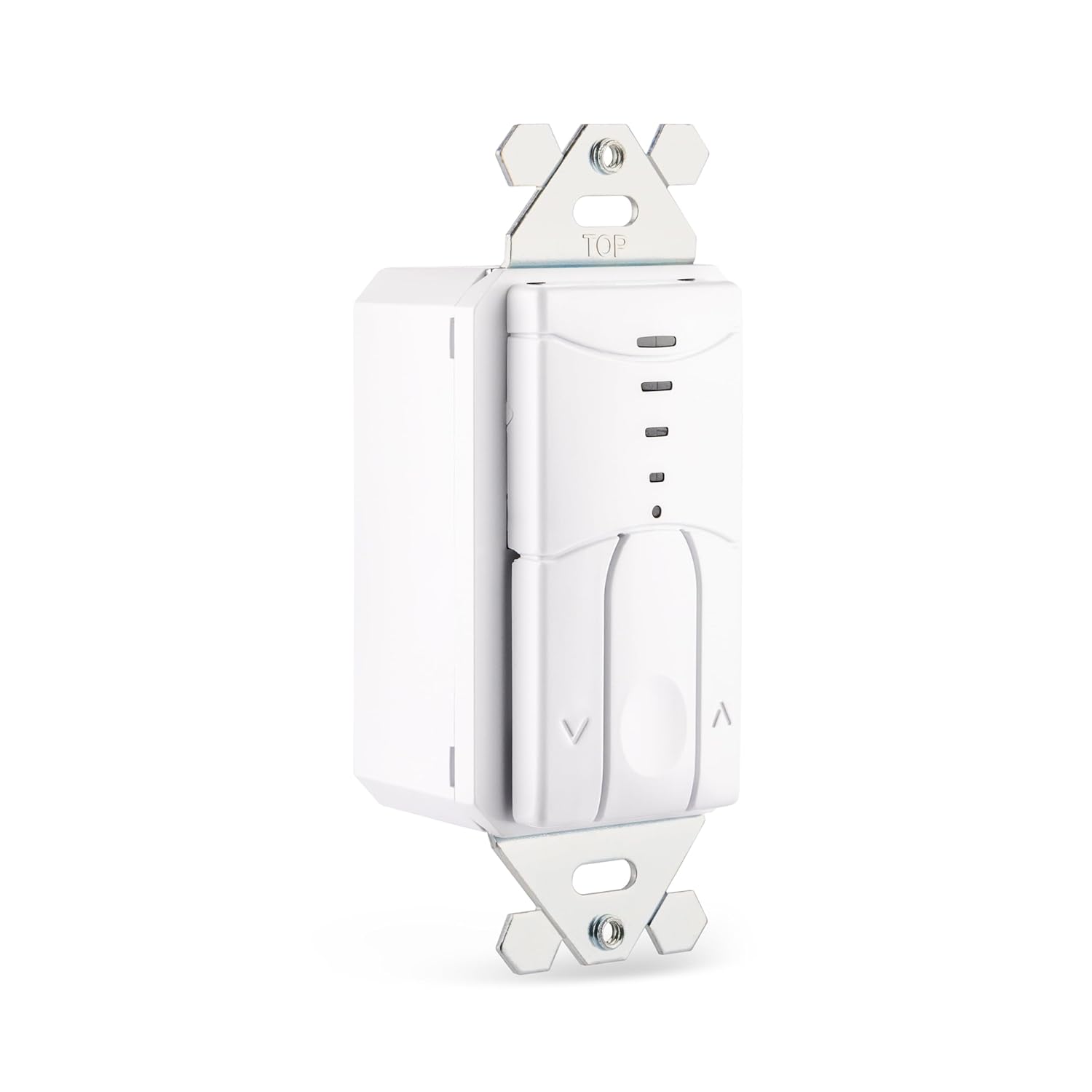

The SENSORWORX line voltage wall switch & 0-10 volt dimmer provides a stylish solution for spaces where manual dimming control is required. Designed with contractors in mind, the unit is significantly shallower than typical dimmers, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral connection. For dimming adjustment, intuitive raise and lower buttons are present in addition to the on/off button. Five vertically stacked LEDs are provided to indicate the current dimming level. Configurable dimming parameters include High/Low Trims, Turn on Levels, and Curve Types. This dimmer also matches the SENSORWORX family of wall switch occupancy sensors and 0-10V dimming wall switch sensors.
- Dimming Control: This standalone wallbox device enables manual dimming control of 0-10V lighting, providing precise control over lighting levels. Dimming feature also enables Partial On operating mode. Note, controlled lighting must have 0-10VDC dimming wires.
- Intuitive Wiring: No Neutral wire required, unit is safe to power over ground connection only. No Minimum Load required. Compatible with standard 3-way toggle switches or SWX-821 switch.
- Versatile Installation: Requiring less than 1" of mounting depth in a single gang wallbox, this unit is shallower than other in-wall devices.
- Quality and Compliance: Proudly made in the USA, 5-year warranty. UL Listed, RoHS Compliant, BAA Compliant, BABA Compliant, TAA Compliant, Meets ASHRAE 90.1, IECC, and Title 24.
| Color | White |
|---|---|
| Model | SWX-823-WH |
| Wattage | 800 watts |
| Terminal | Wire Leads (Pigtail) |
| Brand Name | SENSORWORX |
| Unit Count | 1.0 Count |
| Item Weight | 4.04 Ounces |
| Switch Type | Sensor |
| Circuit Type | 1-way, 3-way, 4-way |
| Contact Type | Single Pole Single Throw (Spst) |
| Manufacturer | SENSORWORX |
| Material Type | Plastic |
| Mounting Type | Surface Mount |
| Connector Type | Crimp |
| Current Rating | 1 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Motion |
| Item Dimensions | 1.39 x 1.68 x 2.74 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 120 Volts |
| Specification Met | RoHS |
| Included Components | Wall Switch |
| Number of Positions | 1 |
| Lower Temperature Rating | 32 Degrees Fahrenheit |
| Upper Temperature Rating | 122 Degrees Fahrenheit |
| International Protection Rating | 0-95% Non-Condensing |
